VFD Management System
Overview
EcoGuard VFD Management System is designed for marine environments, targeting motors, fans, and pumps in engine rooms to enhance energy efficiency and reduce emissions.
Solution
EcoGuard VFD Management System regulates motor speed and torque b y varying electrical frequency, matching power output to actual load demands. This dynamic control minimizes energy waste, especially during partial load operations, where traditional systems consume excess power. Integrated with shipboard networks, i t allows for remote monitoring and adjustment, optimizing performance and maintenance scheduling.
Case Value
EcoGuard FD Management System Significantly reduces fuel consumption and carbon footprint by operating machinery a t optimal efficiency levels. Enhances operational reliability and prolongs equipment lifespan through reduced wear and tear. The system's scalable design accommodates various vessel sizes and propulsion systems, making i t a versatile solution for modernizing marine engineering practices towards sustainability.

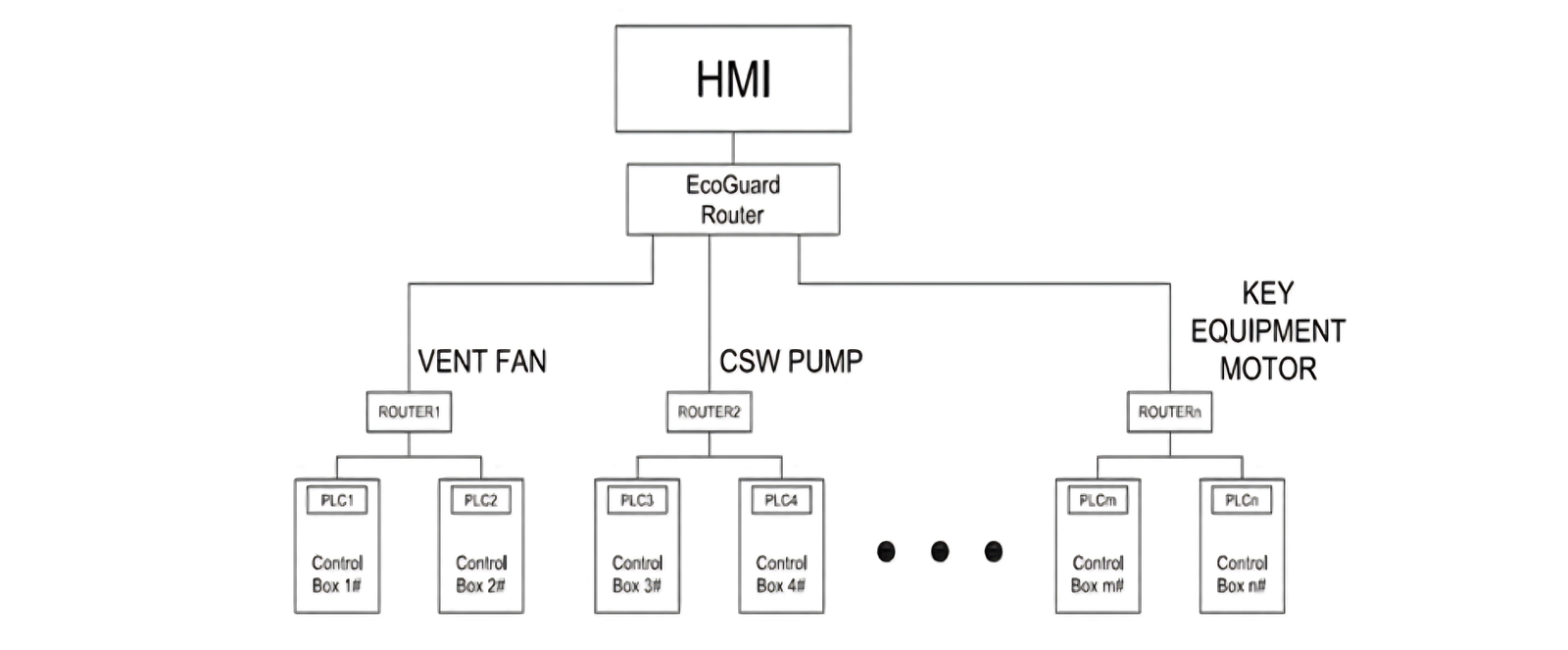

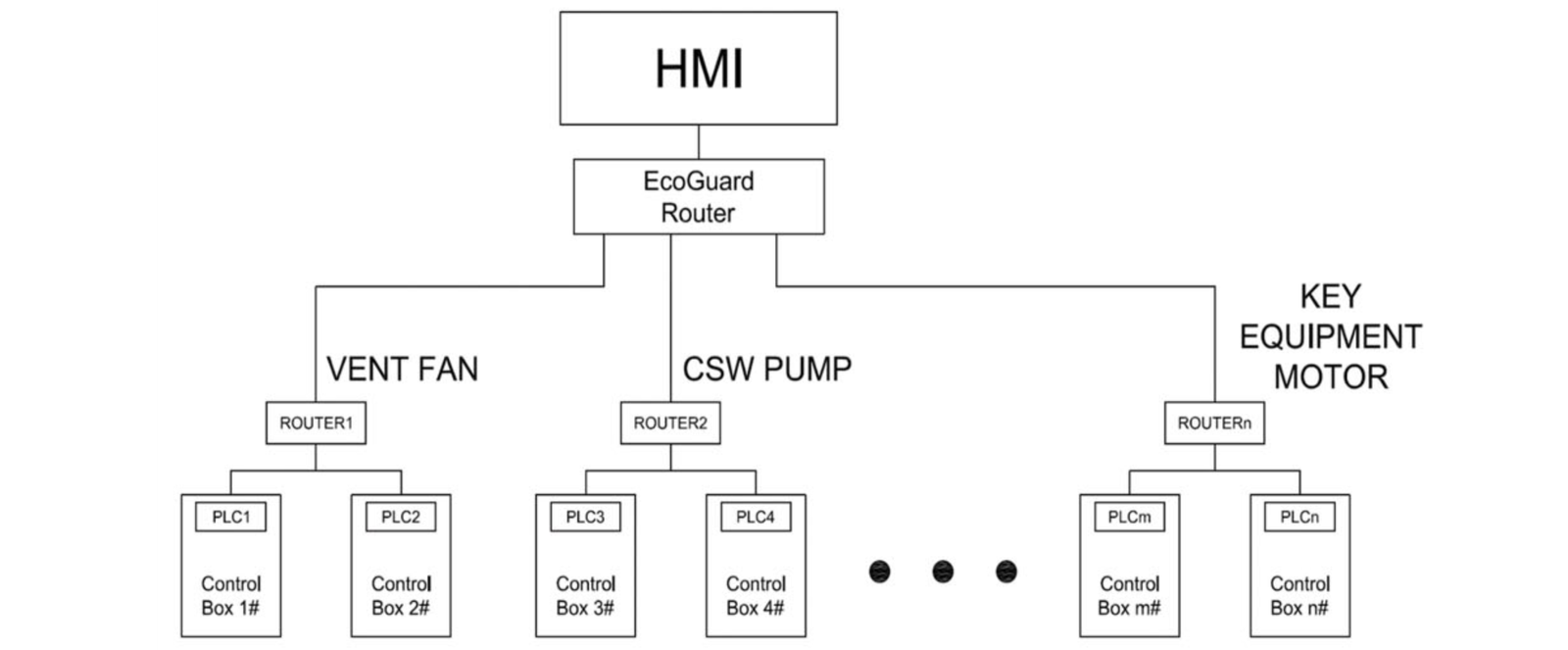

EcoGuard VFD SYSTEM
- Energy conservation
- Reduce GHG emission
- Friendly HMI
- Support for multiple extended connections
- Motor soft start
- Motor speed optimization
- Reduce mechanical weariness
- Prolong service life
- Reduce spare parts
- Reduce downtime

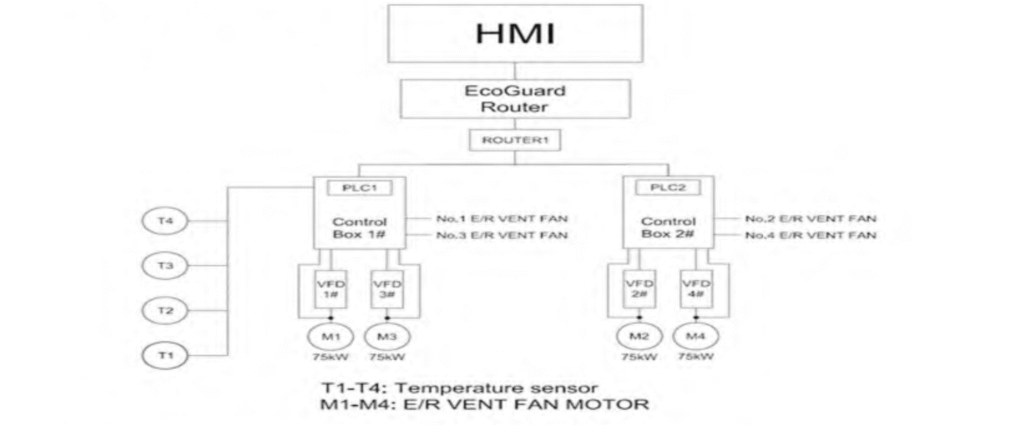

EcoGuard VFD FOR VENT FAN
Statistics on energy conservation and emission reduction per year
VENT FAN (KW)
75
QUANTITY (SET)
4
RUNNING TIME (Hour)
7200
Fuel Saving (T)
112
Co2 Reduction (T)
348
